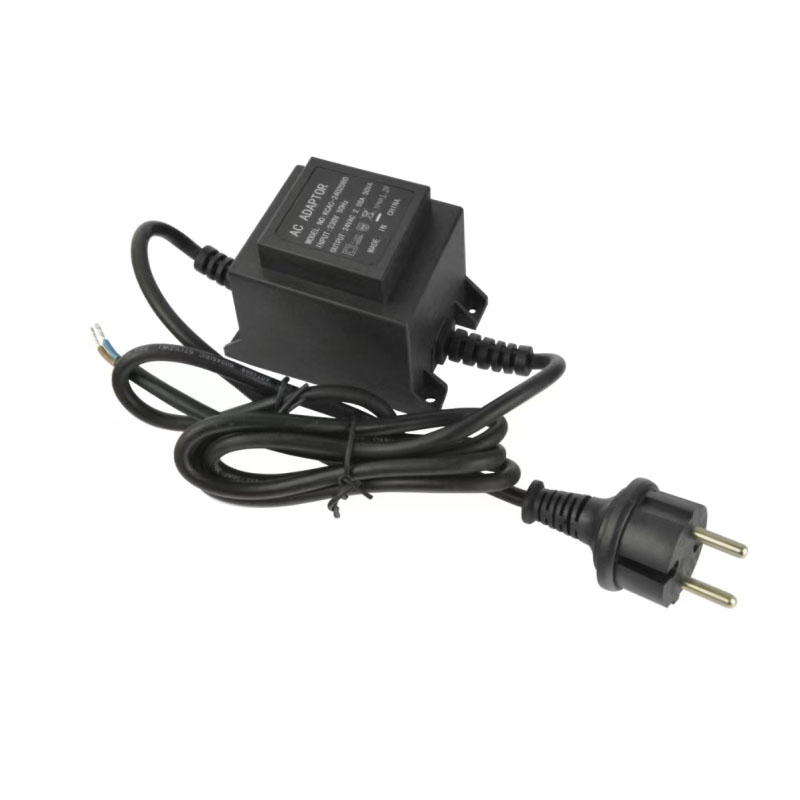

12VAC 420mA Outdoor Deskmount Liner Adapter

Product Description

1.ELECTRICAL PERFORMANCE As a professional 12VAC 420mA Outdoor Deskmount Liner Adapter manufacture.

1-1.Primary rated voltage and frequency：230VAC 50Hz.

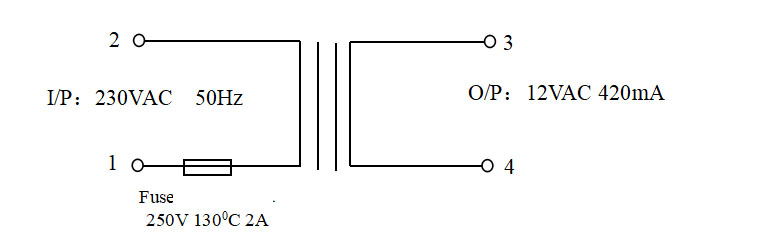

1-2.ELECTRICAL CHARACTERISTICS

1-3．Secondary rated voltage and current

1-4.Primary exciting current(lo)：20mA rms max,at input 230VAC 50Hz.
Loading(IL)：75mA rms max.
1-5.D.C.Resistance：Primary：/Ω±15%,measured at25℃.

1-6.Empty loss max：2.5watts max,at input 230VAC 50Hz.
1-7.Temperature rise：75℃ max on primary coil by the resistance method,and 45℃ max on the surface of the case by the thermometer method at 25℃ ambient,rated load condition.
1-8.Insulation resistance：500VDC supplied,100M ohms minimum between winding & core.
1-9.HI-pot test：3750VAC 50Hz for 60seconds (leakage current 1mA) primary to secondary&core.
1200VAC 50Hz for 60seconds (leakage current 1mA) secondary to core.
1-10.Induce voltage：All secondary opened,primary should withstand 380V 360Hz for 60second without breakdown.
1-11.Life test：In an ambient temperature of 25℃ ,90-95% R.H.,applying a power source of 230VAC 50 Hz to primary, with full load420 mA for 24 hours contimuously,unit output normally  and meet the requirements of item 1-8、1-9.
1-12.Humidity test：In an ambient temperature of 40±2℃ and 90-95% R.H..for 48 hours after 10 minutes out of the oven,the unit should meet item 1-9 requirements,and insulation Resistance shall be 10M ohms minimum.
2.MECHANICAL CHARACTERISTICS
2-1．Drop test：Dropped freely from 3 feet height onto a concrete floor covered with 1/8
inch vinyl tile 3 times from 3 different surface,the unit should meet the item 1-9
2-2.Strain relief test：At normal position, 10 lbs to output cord for 50 secods each,there shall be no breakage displacement.
2-3.Bending test：The plug and S/R should withstand weight of 200 gram,swinging from left to right at an angle of 120 degree for 2000 cycles,and 40cycles per minute. The  cord shall be conductible.
3.SAFETY STANDARD
◇ Meet                     ◆ Approved
◇ UL/CUL     ◇CSA     ◇TUV/CE     ◆GS/CE     ◇T-MARK     CQC
4.INSULATION SYSTEM
◇CLASS A（105℃）               ◇CLASS E（230℃）
◆CLASS B（130℃）               ◇CLASS F（155℃）
5．MECHANICAL REQUIRMENTS
5-1．Appearance：Damage and rusting are not permitted.
6.ENVIROMENTAL CONDITION
6-1.Operating temperature range：-10℃---+40℃
6-2.Storage temperature range：-40℃---+70℃
6-3.Operation humidity range：10---90% R.H
7.INSPECTION ON LINE
7-1．The test items for each produce
◆ Primary exciting current
◆ Core loss
◆ Output voltage
◆ Input current and power at rated load
◆ Foreign mass by shock
◆ Polarity of output plug
◆ Hi-pot test
◆ Apperance
7-2．The test item for part of products
◆ Hum operating at rated load
◆ D.C.Resistance
◆ Insulation test
8.NET WEIGHT

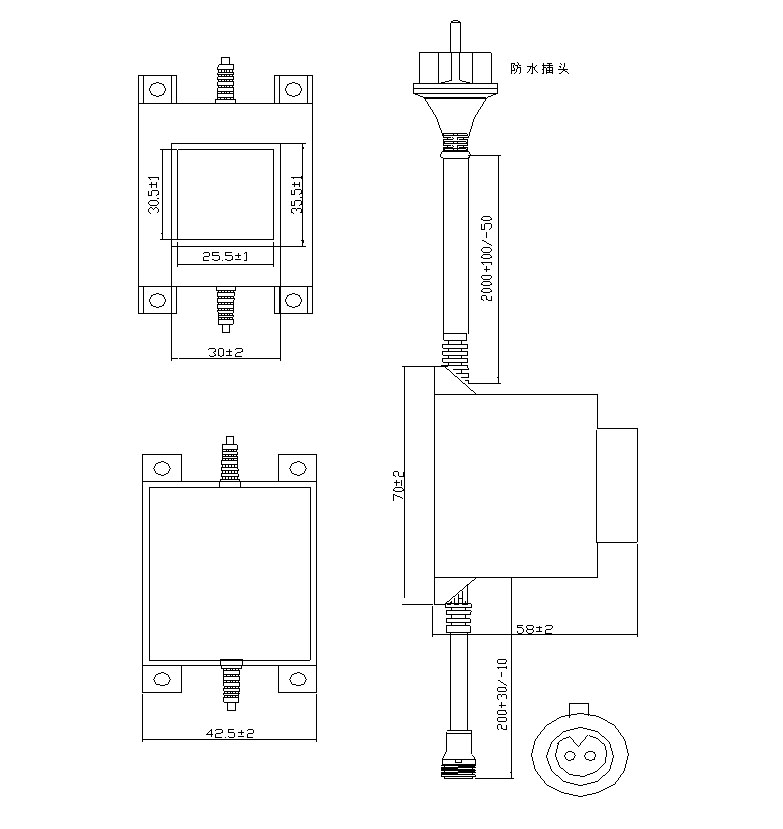

9.APPEARANCE DIMENSION

INPUT CORD：HO5RN-F2*1.0MM2  2M
OUTPUT CORD：HO5RN-F2*0.75MM2  0.2M

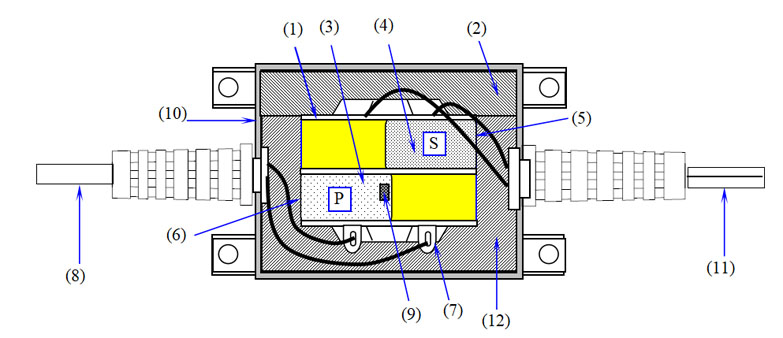

10.MATERIAL  LIST
