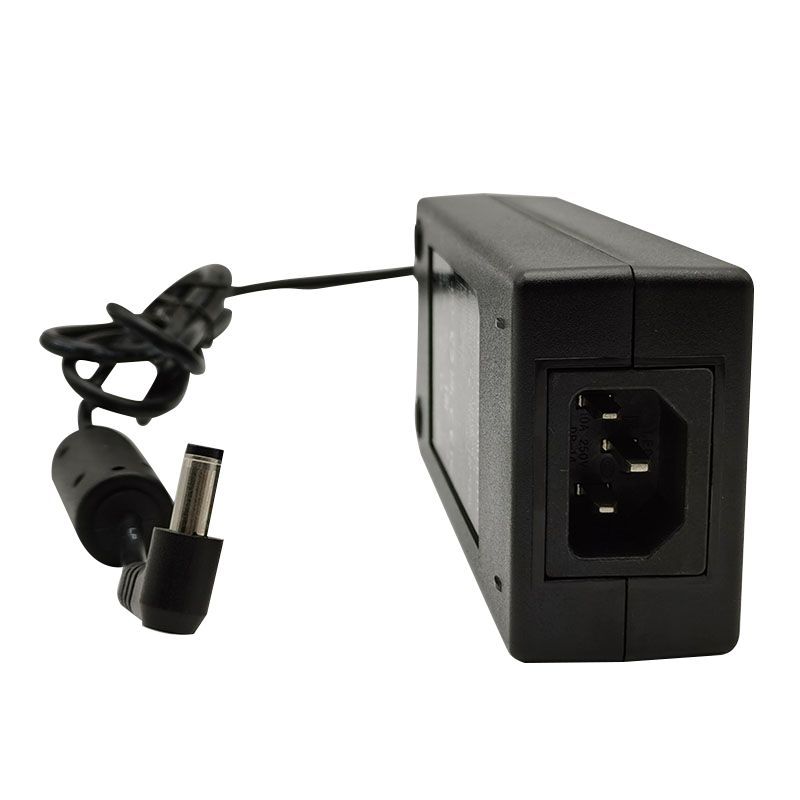

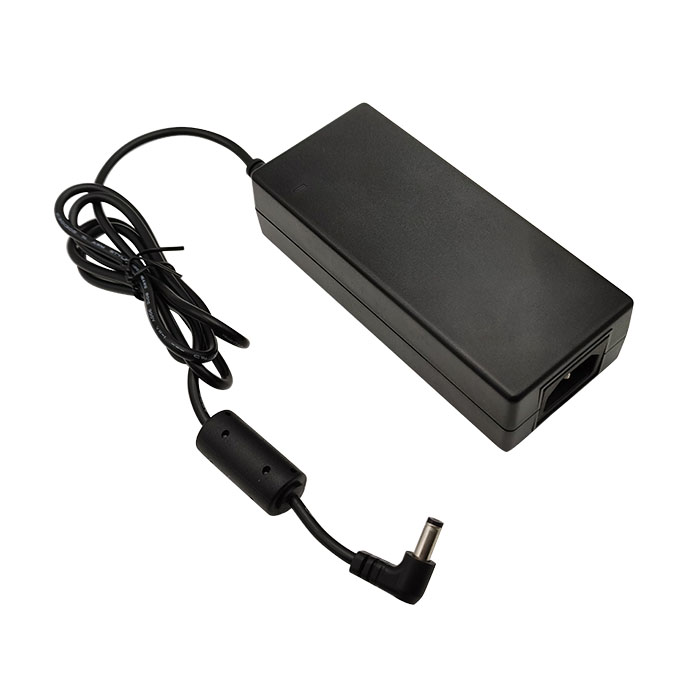

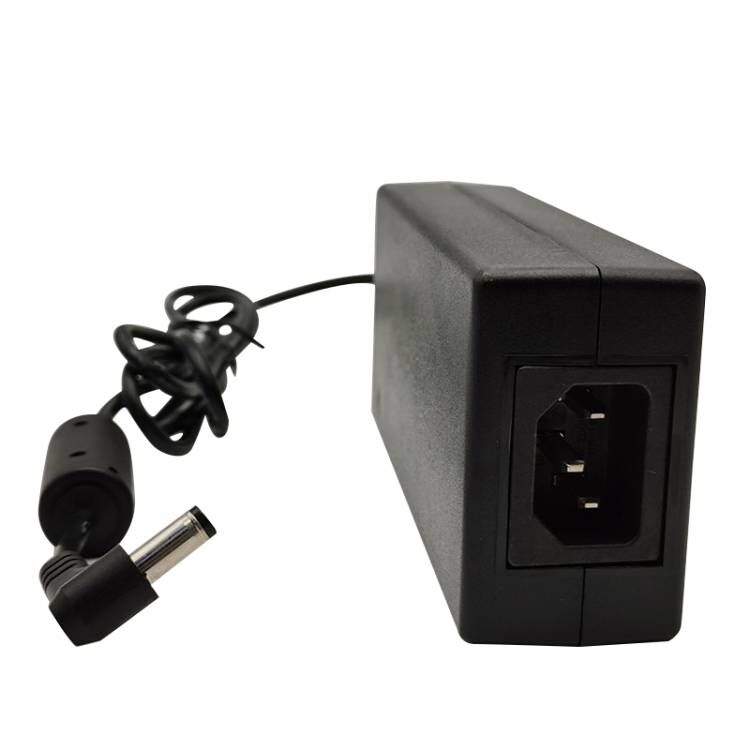

80-100W AC DC Desktop Adapter

Buy high quality 80-100W AC DC Desktop Adapter with made in China. Powereagle is 80-100W AC DC Desktop Adapter manufacturer and supplier in China.

80-100W Adapter Power Supply Features
• LED Indicator
• LPS Compliance
• Active PFC Function
• Protections: Short circuit / Over voltage / Over current Over temperature
• Energy Efficiency Level VI or CoC Tier Ⅱ
• No Load Power Consumption ≤ 0.21 W (VI), ≤ 0.15 W (Tier II)
• MTBF > 100,000 hours
PEA1095 X Y - vv PP

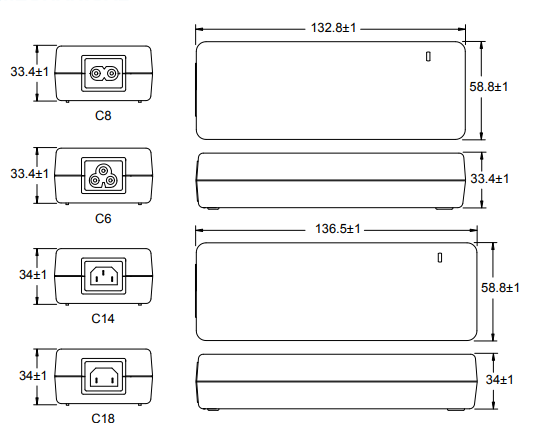

X:AC inlet: 1. C14 2. C8 3. C6 6. C18
Y:Output range
vv:Specified output voltage, i.e. 12 is 12VDC
PP:DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
General Specification
OUTPUT

NOTE:
Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
Max. Power (W) ≥ Vo x Io
INPUT
• Input Range100 to 240 VAC
• Frequency50 to 60Hz
• Input Current≤ 2.5A
• Inrush Current≤ 120A/230VAC
• Hold Up Time≥ 8.3ms
• Turn On Time≤ 3s
PROTECTION
• Short Circuit ProtectionAuto Recovery
• Over Voltage ProtectionAuto Recovery
• Over Current ProtectionAuto Recovery
• Over Temperature ProtectionLatch-off
ENVIRONMENT
• Operating Temperature-20 to 40°C
• Storage Temperature-20 to 85°C
• Operating Humidity10% to 90%
• Storage Humidity5% to 95%
PROTECTION

SAFETY
Certified for whole series: UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), CCC, UKCA
Certified for assigned models: BSMI, PSE, BIS, RCM, KC, CU, PSB, NRCAN, Argentina
