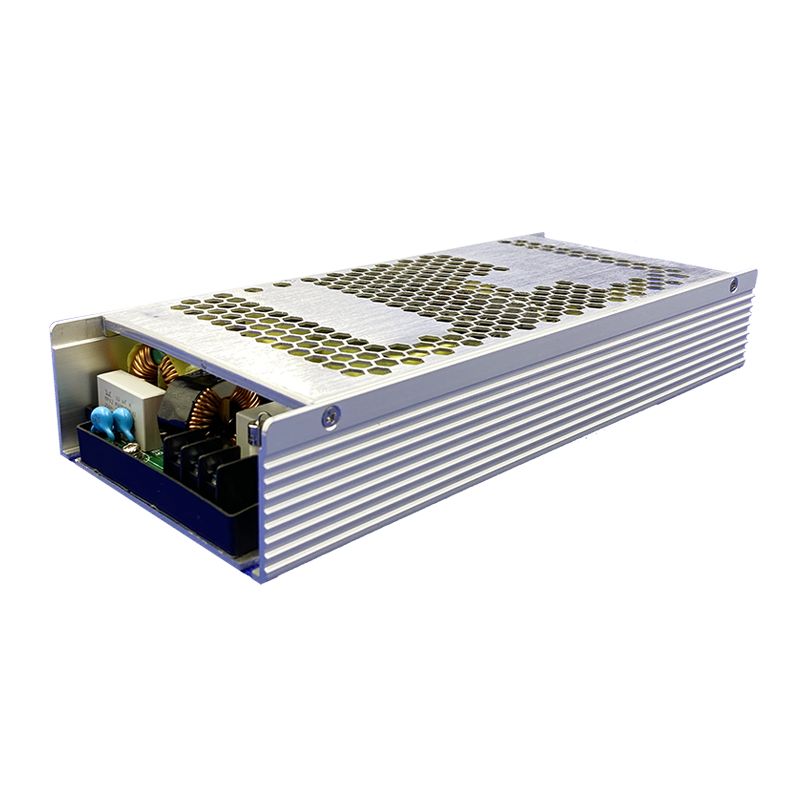

750-800W Enclosed AC DC Switching Power Supply

Powereagle is a professional China 750-800W Enclosed AC DC Switching Power Supply manufacturer and supplier, if you are looking for the best 750-800W Enclosed AC DC Switching Power Supply with low price, consult us now!

 Features
• Slim and Low Profile
• Protections : Short circuit / Over voltage / Over current / Over temperature
• Energy Efficiency ≥ 92%~95% depends on models
• MTBF > 50,000 hours
• Fanless and Conduction-cooled Design
• Withstand 300VAC Surge Input for 5 seconds
• Built-in Active PFC Function
• DC OK Active Signal
• LED Indicator
EP1800 XX YY
XX: Specified output voltage, i.e. 12 is 12VDC
YY: Differential segmentation
General Specification
OUTPUT

NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
INPUT
• Input Range 100to 240VAC
• Frequency50 to 60Hz
• Input Current≤ 7.5A
• Inrush Current≤ 40A/230VAC
• Hold Up Time≥ 8.3ms
• Turn On Time≤ 1s
PROTECTION
• Short Circuit ProtectionAuto Recovery
• Over Circuit ProtectionAuto Recovery
• Over Voltage ProtectionLatch-off
• Over Temperature ProtectionAuto Recovery
ENVIRONMENT
• Operating Temperature-30 to 70°C
• Storage Temperature-40 to 85°C
• Operating Humidity20% to 90 %
• Storage Humidity10% to 95 %

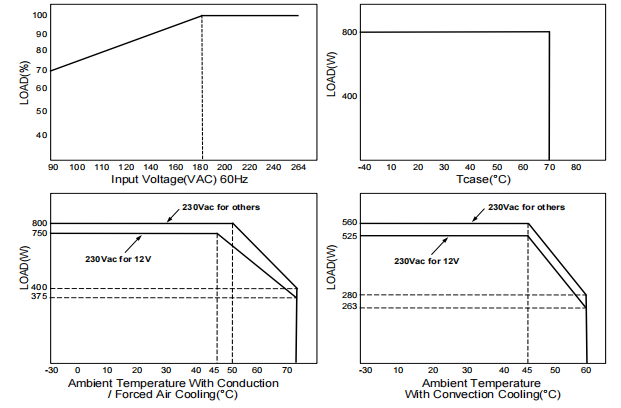

DERATING CURVE

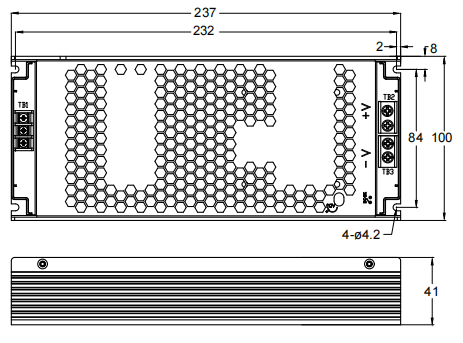

MECHANICAL

• Mechanical Size: 237L x 100W x 41H (mm)
• Pin Assignment:
AC Input Terminal (CN1): DECAT21 or equivalent

DC Output Terminal (CN2,CN3 & CN7,CN8): EDAC Terminal

• Weight: 1400g
SAFETY
• Complied with UL 62368-1, CAN/CSA C22.2 No. 62368-1,  TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B,  CE EMC(EN 55032+EN 55035)
