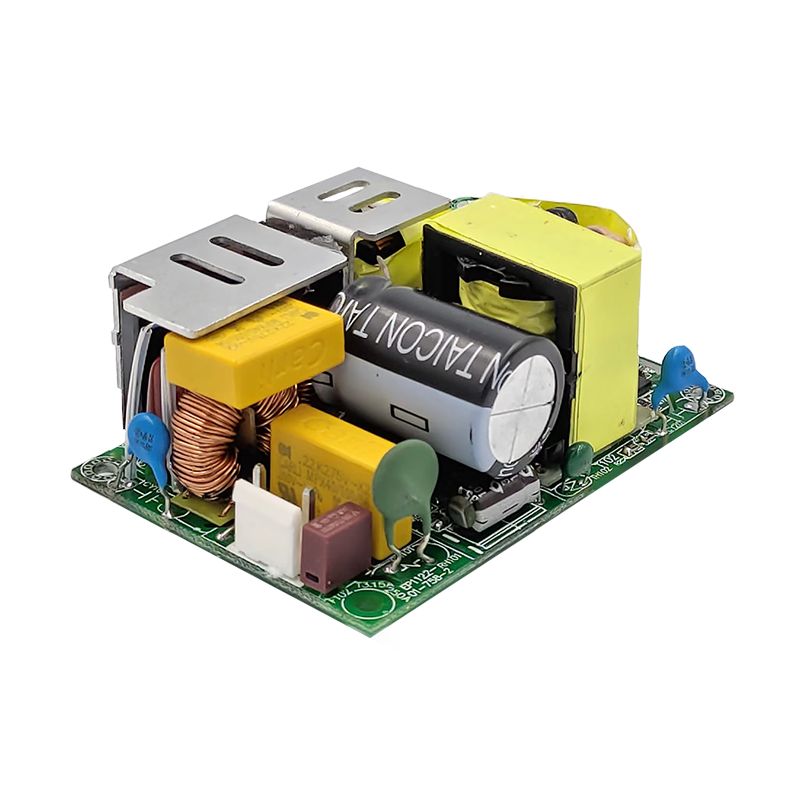

China 150-200W Medical Open Frame Factory Directly Supply. Powereagle is 150-200W Medical Open Frame manufacturer and supplier in China.
• 3" x 2" Compact Size
• 2 x MOPP Compliance
• Protections : Short circuit / Over voltage / Over current / Over temperature
• Energy Efficiency ≥ 90%~92% depends on models
• No Load Power Consumption ≤ 0.3W
• MTBF > 100,000 hours
• Low Leakage Current
• 120W Convection / 150W Peak Load 10s/150W Forced Air
• Customized Solutions Available
U: Output range
XX: Specified output voltage, i.e. 12 is 12VDC
YY: Differential segmentation
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | Mechanical Size |
|---|---|---|---|---|
| 100W Convection / 130W Peak Load 10s / 130W Forced Air | 12VDC | 100~240 | 50~60Hz | 76.2L x 50.8W x 28.5H (mm) |
| 15VDC | ||||
| 24VDC | ||||
| 48VDC | ||||
| 114W Convection / 142W Peak Load 10s / 142W Forced Air | 12VDC | |||
| 15VDC | ||||
| 120W Convection / 150W Peak Load 10s / 150W Forced Air | 27VDC | |||
| 36VDC | ||||
| 48VDC |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
INPUT
• Input Range100 to 240 VAC
• Frequency50 to 60Hz
• Input Current≤ 2.3A
• Inrush Current≤ 60A/230VAC
• Hold Up Time≥ 15ms
• Turn On Time≤ 600ms
PROTECTION
• Short Circuit ProtectionAuto Recovery
• Over Current ProtectionAuto Recovery
• Over Voltage ProtectionLatch-off
• Over Temperature ProtectionAuto Recovery
ENVIRONMENT
• Operating Temperature-20 to 50°C
• Storage Temperature-20 to 85°C
• Operating Humidity10% to 90 %
• Storage Humidity5% to 95 %

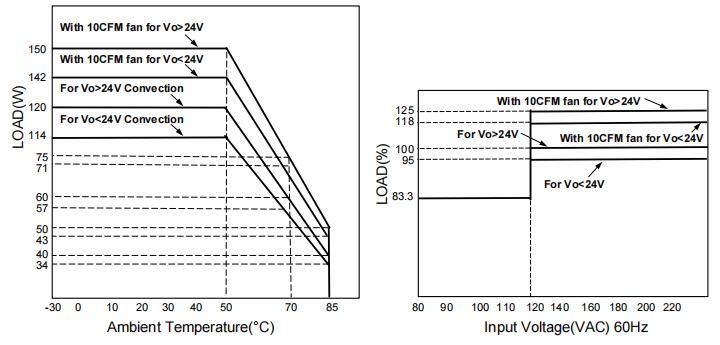

DERATING CURVE

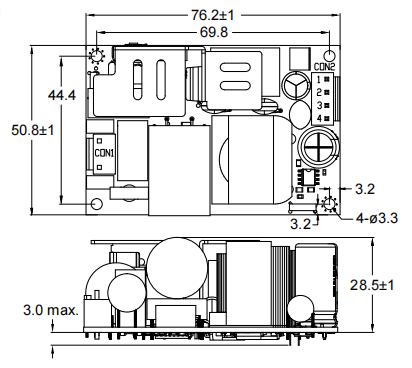

MECHANICAL
• Mechanical Size: 76.2Lx 50.8W x 28.5H (mm)
• AC Input Connector: JST VHR Series or equivalent
• DC Output Connector: JST VHR Series or equivalent
• Pin Assignment:
AC Input Connector:
|
Pin No.
|
Assignment
|
| 1 |
AC/L
|
| 2 |
No Pin
|
| 3 |
AC/N
|
DC Output Connector:
|
Pin No.
|
Assignment
|
|
1, 2
|
+V
|
|
3, 4
|
-V
|
• Weight: 200g
SAFETY
• Certified for whole series: CB IEC 60601-1, CE EMC(EN 60601-1-2), CB IEC 62368-1, CE EMC(EN 55032+EN 55035), FCC Part 15B
<
• Complied with ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1
