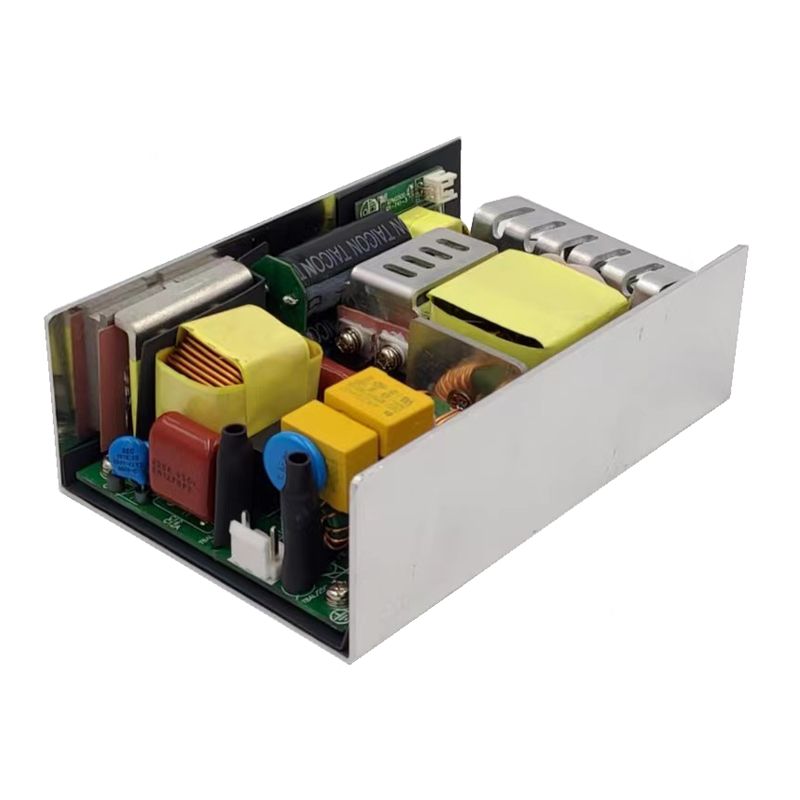

Powereagle is 300-500W Medical Open Frame manufacturers and suppliers in China who can wholesale 300-500W Medical Open Frame. We can provide professional service and better price for you. If you interested in 300-500W Medical Open Frame products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.
Features
• 5" x 3" Compact Size
• 2 x MOPP Compliance
• Protections : Short circuit / Over voltage / Over current / Over temperature
• Energy Efficiency ≥ 89%~92% depends on models
• No Load Power Consumption ≤ 0.5 W
• MTBF > 100,000 hours
• Low Leakage Current

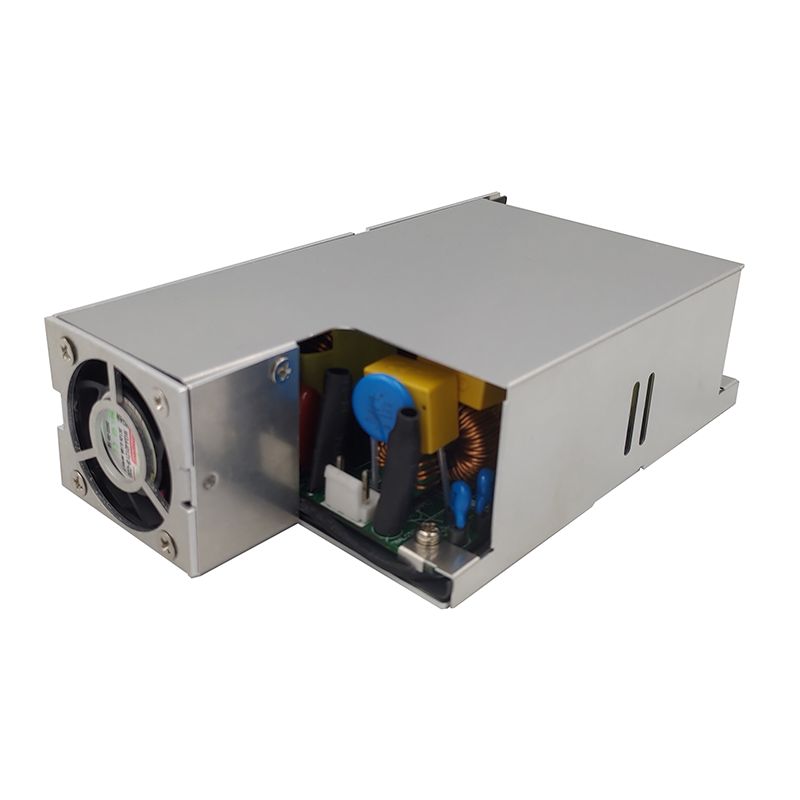

• 350W Convection / 500W Forced Air
• 5V Stand by &12V Fan Supply (optional)
• Customized Solutions Available
EPM V 350 U XX YY
V: Numbers of outputs
U: Output range
XX: Specified output voltage, i.e. 12 is 12VDC
YY: Differential segmentation
General Specification
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | Mechanical Size |
|---|---|---|---|---|
| 300W Convection / 400W Forced Air | 12VDC | 100~240 | 50~60Hz | 130L x 86.5W x 42.8H (mm) |
| 12VDC | ||||
| 18VDC | ||||
| 24VDC | ||||
| 27VDC | ||||
| 36VDC | ||||
| 48VDC | ||||
| 330W Convection / 450W Forced Air | 12VDC | |||
| 15VDC | ||||
| 350W Convection / 500W Forced Air | 18VDC | |||
| 24VDC | ||||
| 27VDC | ||||
| 36VDC | ||||
| 48VDC | ||||
| 350W Convection / 500W Forced Air | 48VDC | |||
| 12/15/18/24/27/36/48VDC / 5V sb. |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
INPUT
• Input Range100 to 240 VAC
• Frequency50 to 60Hz
• Input Current≤ 6A
• Inrush Current≤ 80A/230VAC
• Hold Up Time≥ 10ms
• Turn On Time≤ 3s
PROTECTION
• Short Circuit ProtectionAuto Recovery
• Over Current ProtectionAuto Recovery
• Over Voltage ProtectionAuto Recovery
• Over Temperature ProtectionAuto Recovery
ENVIRONMENT
• Operating Temperature-20 to 50°C
• Storage Temperature-20 to 85°C
• Operating Humidity10% to 90 %
• Storage Humidity5% to 95 %
FUNCTION
• 5V Stand by 5Vsb:5V@0.6A without fan,1A with fan 25CFM
• 12V Fan Supply12V@0.5A for driving fan

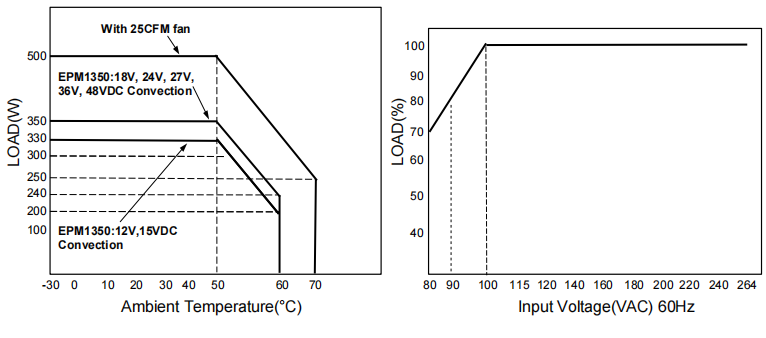

DERATING CURVE
SAFETY
Certified for whole series: CB IEC 60601-1, CE EMC(EN 60601-1-2), CB IEC 62368-1, CE EMC(EN 55032+EN 55035), FCC Part 15B
Complied with ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1
