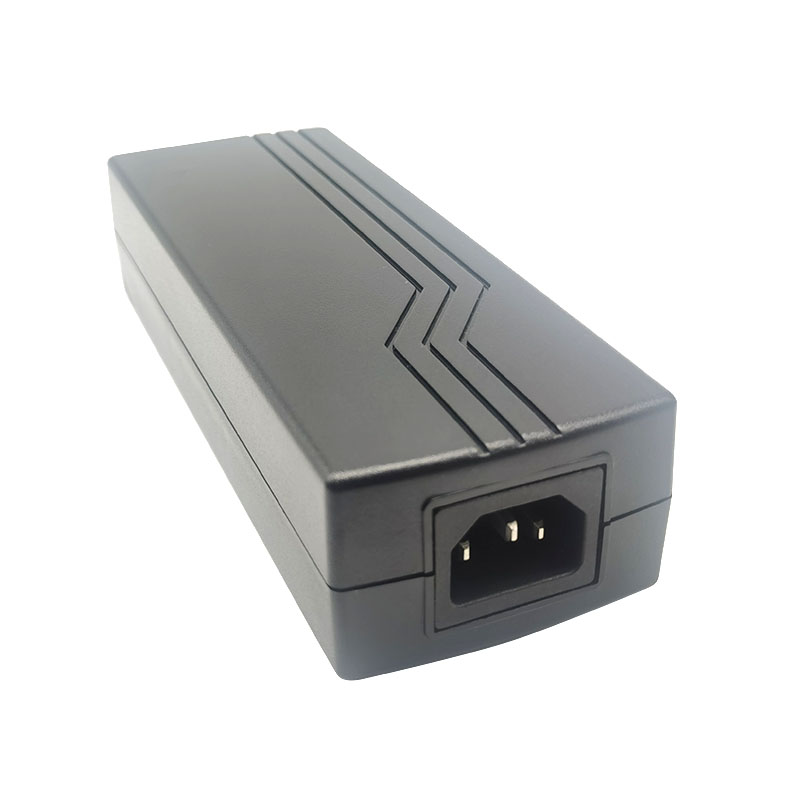

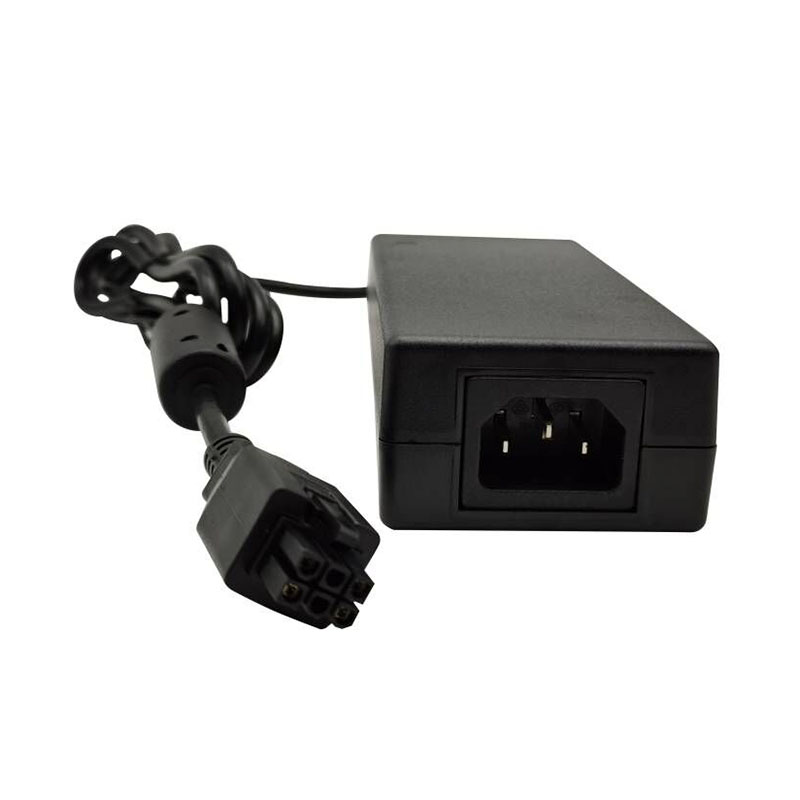

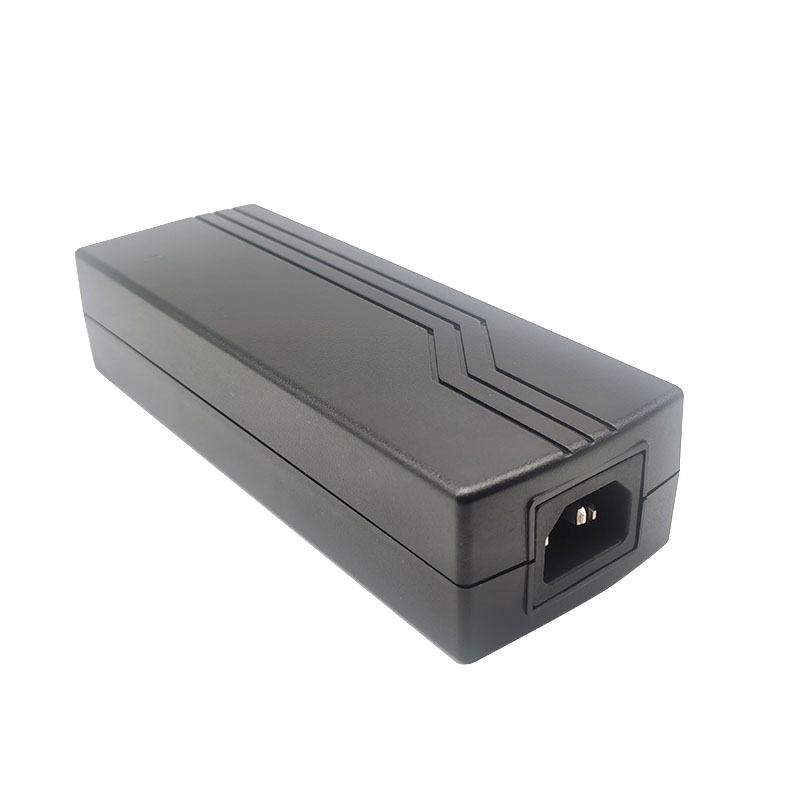

Hot sale quality 130-180W Medical AC DC Desktop Adaptor with Low Price made in China. Powereagle is 130-180W Medical AC DC Desktop Adaptor manufacturer and supplier in China.
Features
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• LED Indicator
• Active PFC Function
• Protections: Short circuit / Over voltage / Over current / Over temperature
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.21W
• MTBF > 50,000 hours
EM1170 X Y - vv PP
X: AC inlet: 1. C14 2. C8 3. C6 6. C18
Y: Output range
vv: Specified output voltage, i.e. 12 is 12VDC
PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
General Specification
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | AC Inlet | Case Size |
|---|---|---|---|---|---|
| 130W | 12~16VDC | 100~240 | 50~60Hz | C14, C8, C6, C18 | 179L x 64.2W x 40H (mm) |
| 130W | 19~24VDC | ||||
| 140W | 12~16VDC | ||||
| 140W | 19~24VDC | ||||
| 150W | 12~16VDC | ||||
| 150W | 19~24VDC | ||||
| 150W | 32~42VDC | ||||
| 150W | 44~56VDC | ||||
| 130W | 32~42VDC | ||||
| 130W | 44~56VDC | ||||
| 130W | 44~56VDC | ||||
| 160W | 19~24VDC | ||||
| 170W | 19~24VDC | ||||
| 180W | 19~24VDC | ||||
| 180W | 32~42VDC | ||||
| 180W | 44~56VDC |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
INPUT
• Input Range100 to 240 VAC
• Frequency50 to 60Hz
• Input Current≤ 2.5A
• Inrush Current≤ 120A/230VAC
• Hold Up Time≥ 8.3ms
• Turn On Time≤ 3s
PROTECTION
• Short Circuit ProtectionAuto Recovery
• Over Voltage ProtectionLatch-off
• Over Current ProtectionAuto Recovery
• Over Temperature ProtectionLatch-off
ENVIRONMENT
• Operating Temperature-20 to 40°C
• Storage Temperature-20 to 85°C
• Operating Humidity10% to 90%
• Storage Humidity5% to 95%

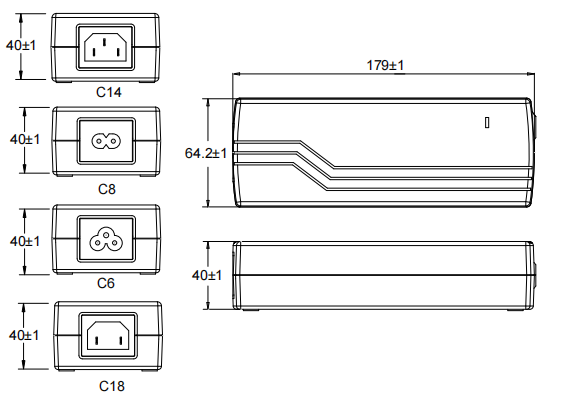

MECHANICAL
• Case Size:179L x 64.2W x 40H (mm)
• AC Inlet:C14, C8, C6, C18
• Weight:705g
SAFETY
Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2) UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA
Certified for assigned models: RCM, CU, NRCAN
