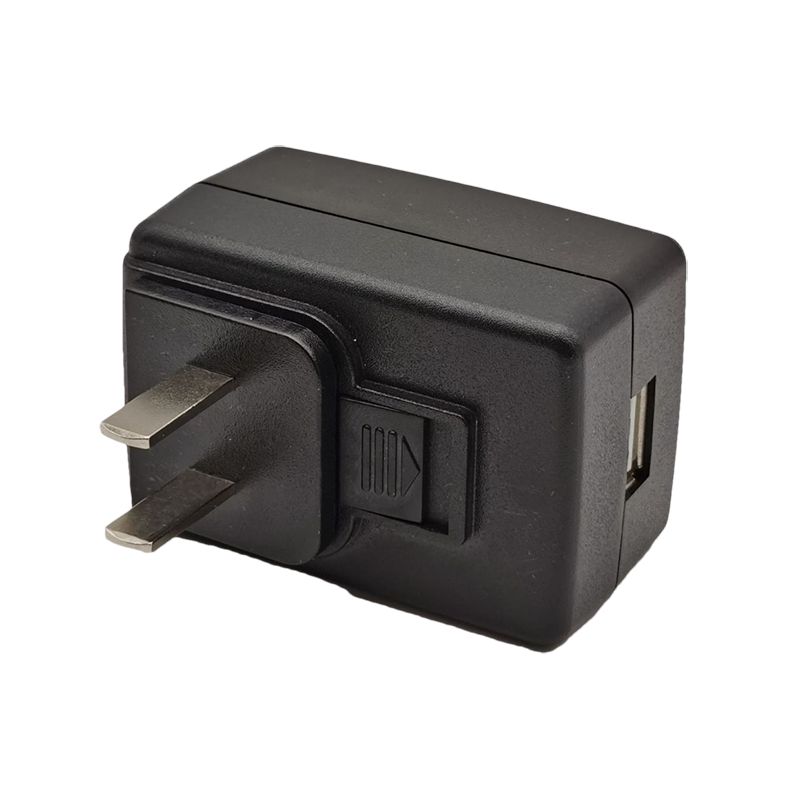

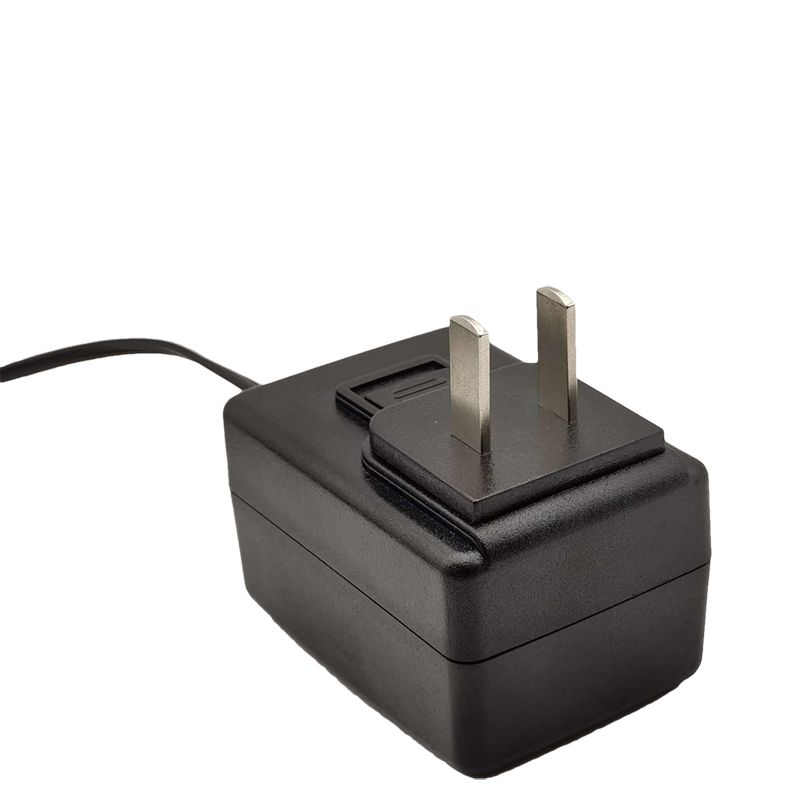

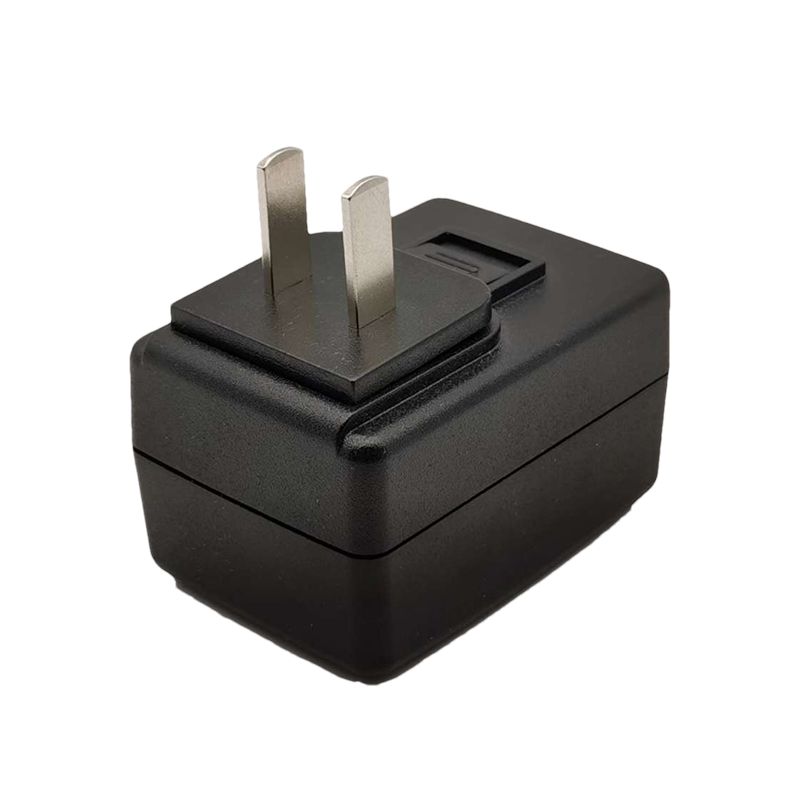

Powereagle as a professional high quality 12W Medical AC DC Interchangeable Adaptor manufacturer, you can rest assured to buy 12W Medical AC DC Interchangeable Adaptor from our factory and we will offer you the best after-sale service and timely delivery.
Features
• 2 x MOPP Compliance, IEC/EN60601-1 Approval
• Protections: Short circuit / Over voltage / Over current
• Energy Efficiency Level VI
• No Load Power Consumption ≤ 0.1W
• MTBF > 100,000 hours
EM1012 X Y R T - vv PP
X: Output range
Y: Case type: (V)Vertical
R: Interchangeable AC plug:
• U: USA • E: EU • K: UK • A: SAA • C: China
• S: South Africa • B: Korea • I: India
T:Output type: U (USB) or S (SR)
vv: Specified output voltage, i.e. 12 is 12VDC
PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
General Specification
OUTPUT
| attage | Output | Universal Input | Frequency | AC Plug type | Case Size |
|---|---|---|---|---|---|
| 12W | 5~8VDC | 100~240VAC | 50~60Hz | U: USA, E: EU, K: UK, A: SAA, C: China,S: South Africa, B: Korea, I: India | 57L x 39W x 34H (mm) |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
INPUT
• Input Range100 to 240 VAC
• Frequency50 to 60Hz
• Input Current≤ 1A
• Inrush Current≤ 60A/230VAC
• Hold Up Time≥ 8.3ms
• Turn On Time≤ 5s
PROTECTION
• Short Circuit ProtectionAuto Recovery
• Over Voltage ProtectionAuto Recovery
• Over Current ProtectionAuto Recovery
ENVIRONMENT
• Operating Temperature-20 to 40°C
• Storage Temperature-20 to 85°C
• Operating Humidity10% to 90%
• Storage Humidity5% to 95%
MECHANICAL

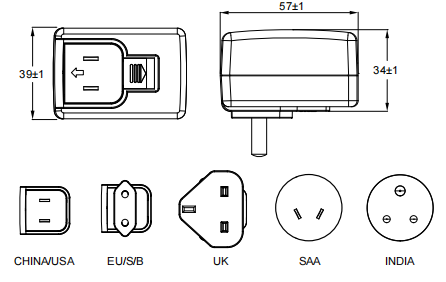

• Case Size: 57L x 39W x 34H (mm)
• AC Plug: U: USA, E: EU, K: UK, A: SAA, C: China ,S: South Africa, B: Korea, I: India
• Weight: 70g
SAFETY
• Certified for whole series: ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, TUV EN 60601-1, CB IEC 60601-1, CE EMC(EN 60601-1-2)UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA
• Certified for assigned models: PSE, NRCAN
