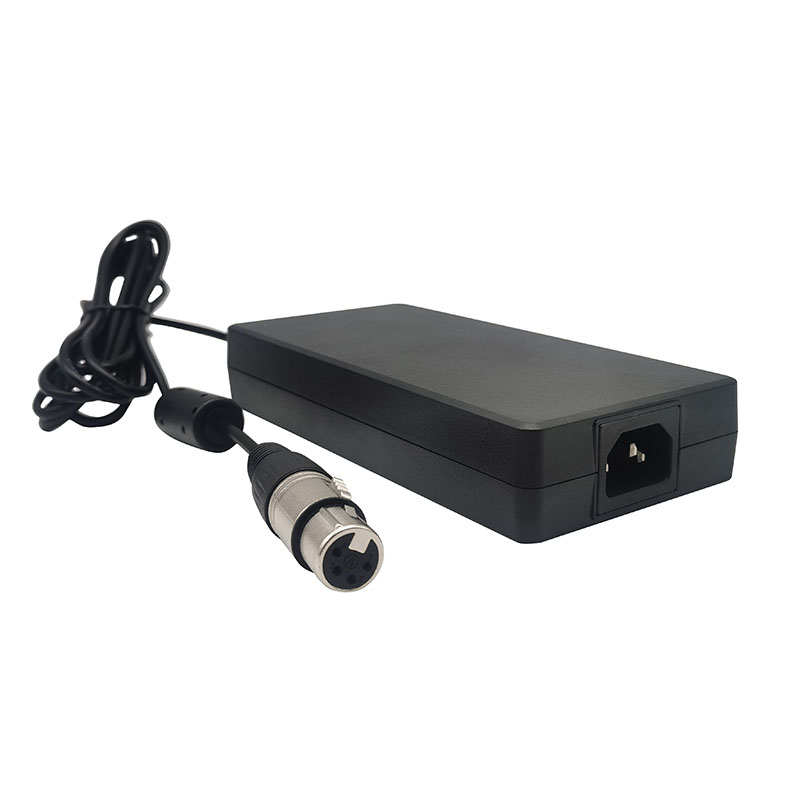

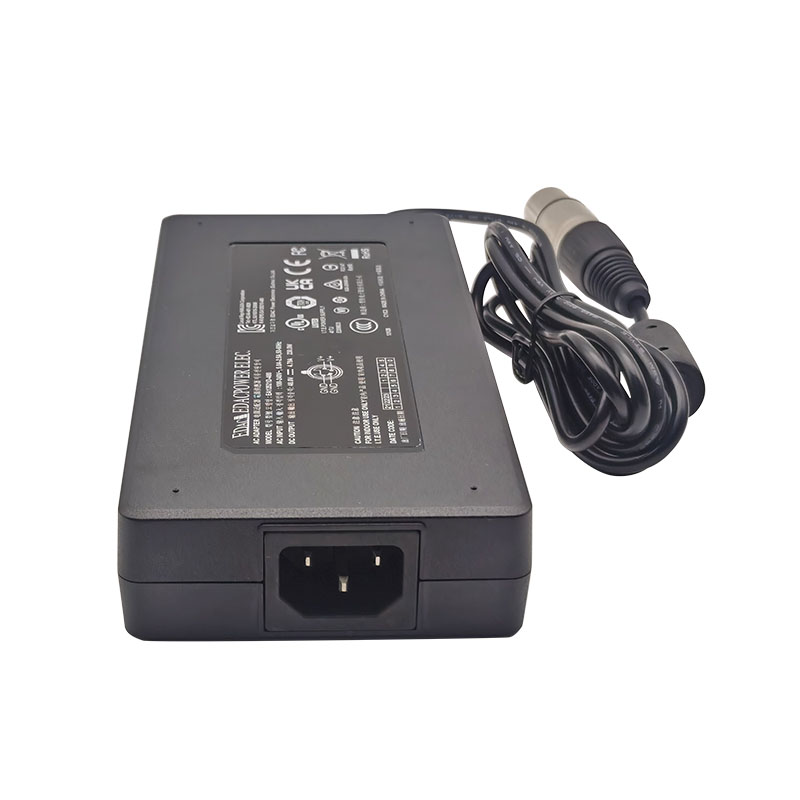

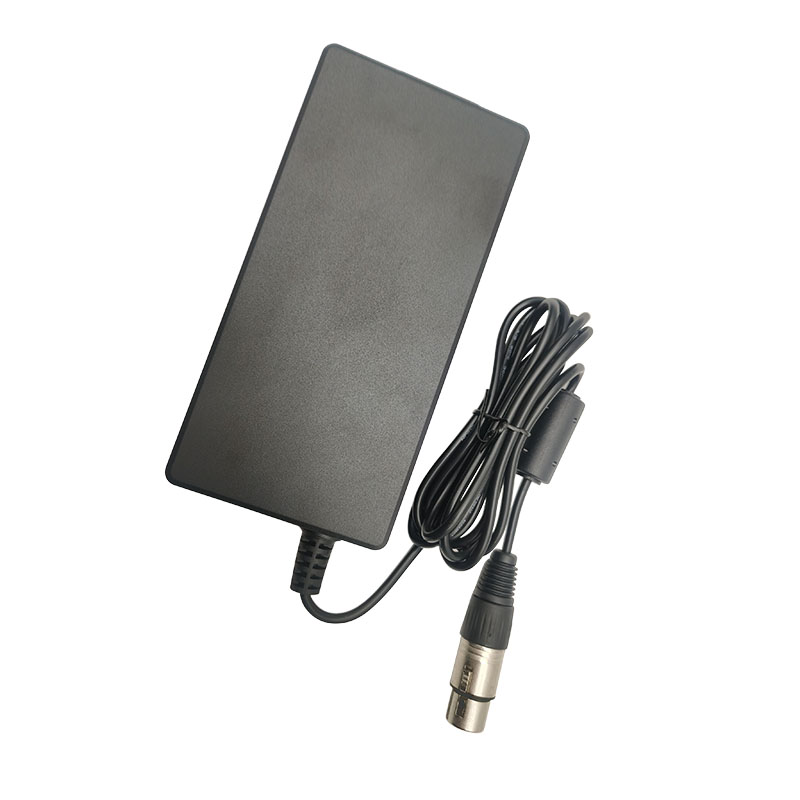

90-250W AC DC Desktop Adapter

Buy Discount 90-250W AC DC Desktop Adapter with Free Sample made in China. Powereagle is 90-250W AC DC Desktop Adapter manufacturer and supplier in China.

90-250W Adapter Power Supply Features
Active PFC Function
Protections:Short circuit / Over voltage / Over current / Over temperature
Energy Efficiency Level VI or CoC Tier II
No Load Power Consumption ≤ 0.21W (VI), ≤ 0.15W (Tier II)
MTBF > 50,000 hours
PEA1252 X Y - vv PP
X: AC inlet: 1. C14 2. C8 3. C6 6. C18
Y: Output range
vv: Specified output voltage, i.e. 12 is 12VDC
PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
General Specification
OUTPUT

NOTE:
Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
Max. Power (W) ≥ Vo x Io
INPUT
• Input Range100 to 240 VAC
• Frequency50 to 60Hz
• Input Current3.5A to 2.5A
• Inrush Current≤ 140A/230VAC
• Hold Up Time≥ 8.3ms
• Turn On Time≤ 3s
PROTECTION
• Short Circuit ProtectionLatch-off
• Over Voltage ProtectionLatch-off
• Over Current ProtectionLatch-off
• Over Temperature ProtectionLatch-off
ENVIRONMENT
• Operating Temperature-20 to 40°C
• Storage Temperature-20 to 85°C
• Operating Humidity10% to 90%
• Storage Humidity5% to 95%

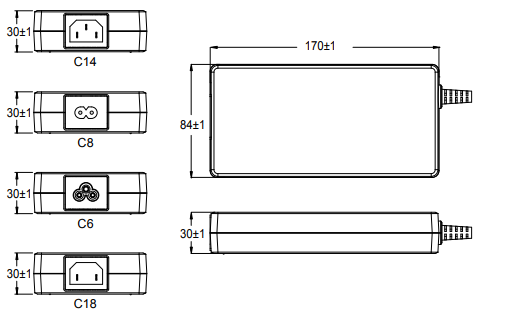

MECHANICAL

• Case Size: 170L x 84W x 30H (mm)
• AC inlet: C14, C8, C6, C18
• Weight: 950g
SAFETY
Certified for whole series: UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA
Certified for assigned models: CCC, BSMI, PSE, BIS, RCM, KC, NRCAN
