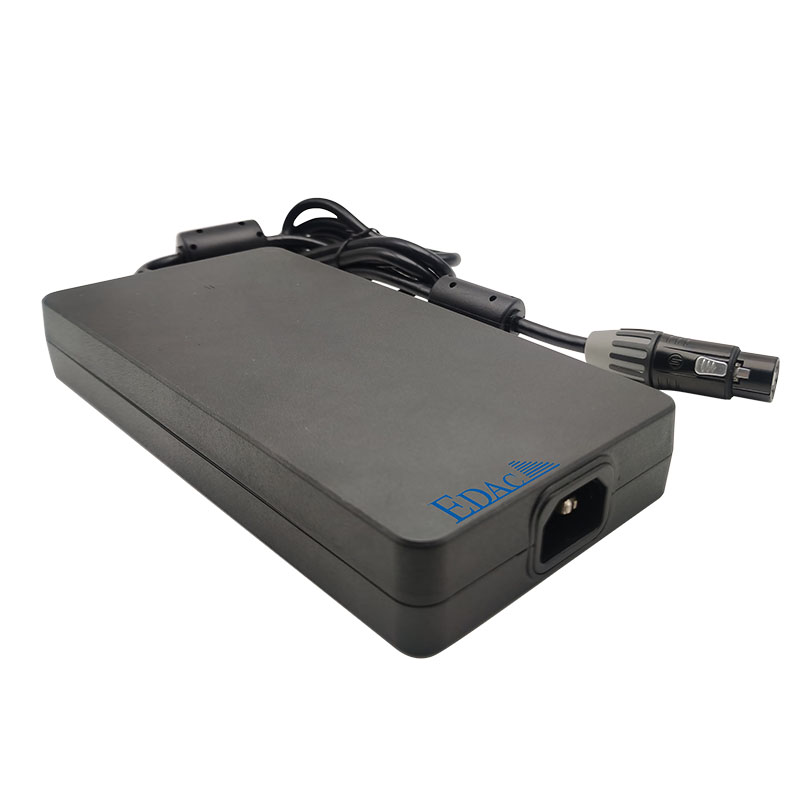

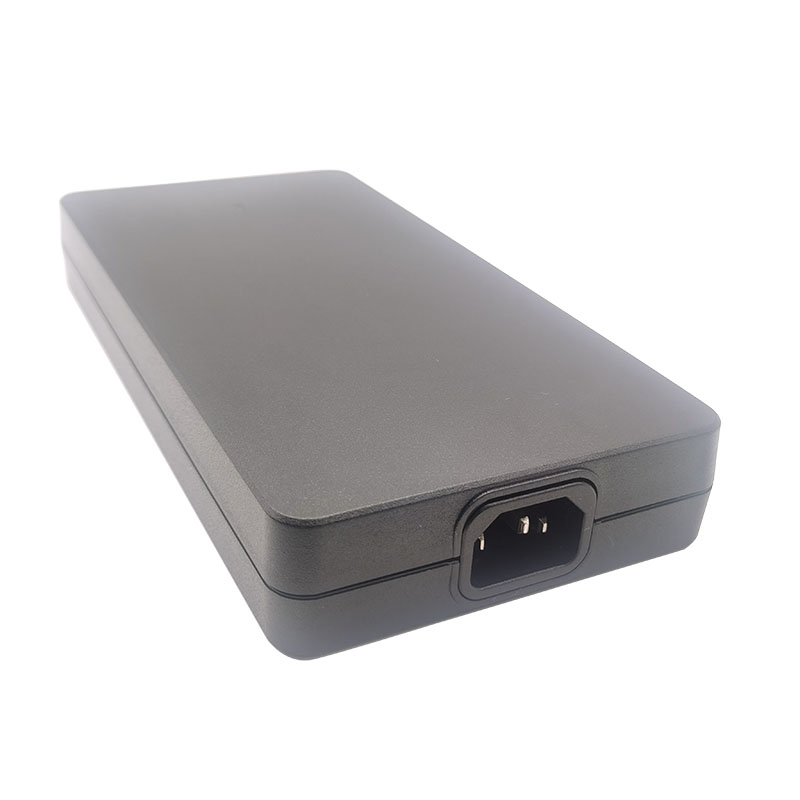

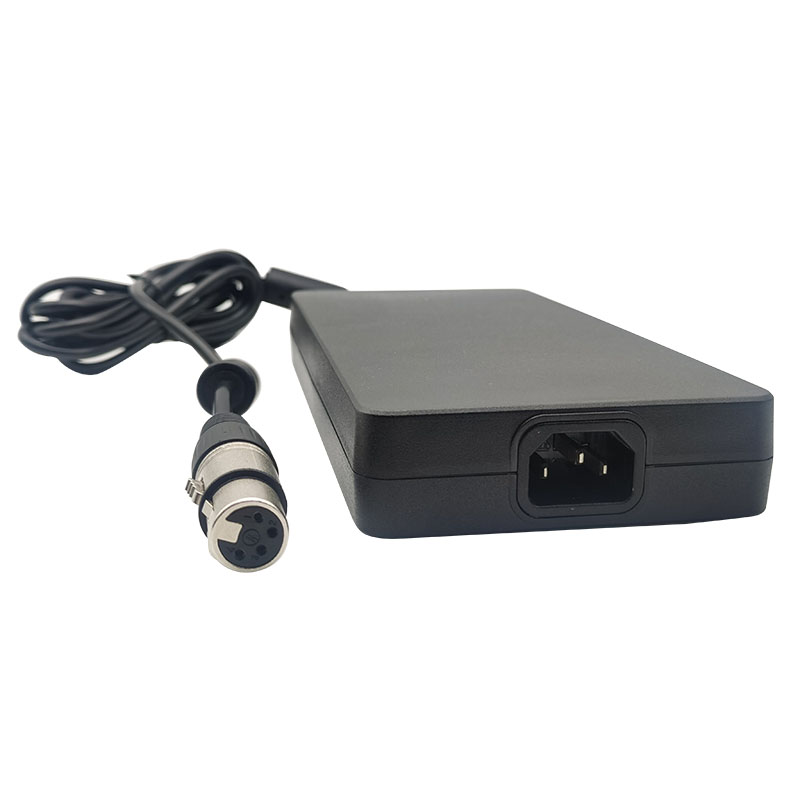

Hot Selling Low Price 240-330W Adapter Power Supply. Powereagle is 240-330W Adapter Power Supply manufacturer and supplier in China.
240-330W Adapter Power Supply Features
Slim Size
Protections:Short circuit / Over voltage / Over current / Over temperature (optional)
Energy Efficiency Level VI
No Load Power Consumption ≤ 0.5W
MTBF > 100,000 hours
PEA1330 X Y - vv PP
X: AC inlet: 1. C14
Y: Output range
vv: Specified output voltage, i.e. 12 is 12VDC
PP: DC plug type, i.e. Code 01 for 5.5x2.1mm or other options (refer to the appendix page)
General Specification
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | AC Inlet | Case Size |
|---|---|---|---|---|---|
| 240W | 12~16VDC | 100~240 | 50~60Hz | C14 | 200L x 100W x 29H (mm) |
| 240W | 19~24VDC | ||||
| 240W | 32~42VDC | ||||
| 240W | 48~56VDC | ||||
| 270W | 12~16VDC | ||||
| 270W | 19~24VDC | ||||
| 270W | 32~42VDC | ||||
| 270W | 48~56VDC | ||||
| 300W | 12~16VDC | ||||
| 300W | 19~24VDC | ||||
| 300W | 32~42VDC | ||||
| 300W | 48~56VDC | ||||
| 300W | 48~56VDC | ||||
| 330W | 19~24VDC | ||||
| 330W | 32~42VDC | ||||
| 330W | 48~56VDC |
NOTE:
Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
Max. Power (W) ≥ Vo x Io
INPUT
• Input Range100 to 240 VAC
• Frequency50 to 60Hz
• Input Current5A to 2.5A
• Inrush Current≤ 180A/230 VAC
• Hold Up Time≥ 8.3ms
• Turn On Time≤ 3s
PROTECTION
• Short Circuit ProtectionLatch-off
• Over Voltage ProtectionLatch-off
• Over Current ProtectionLatch-off
• Over Temperature ProtectionLatch-off
ENVIRONMENT
• Operating Temperature-20 to 40°C
• Storage Temperature-20 to 85°C
• Operating Humidity10% to 90%
• Storage Humidity5% to 95%
MECHANICAL

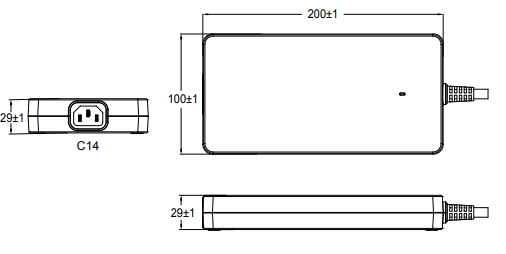

• Case Size:200L x 100W x 29H (mm)
• AC Inlet:C14
• Weight:1200g
SAFETY
Certified for whole series: UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035), UKCA
Certified for assigned models: CCC, BSMI, PSE, BIS, KC
