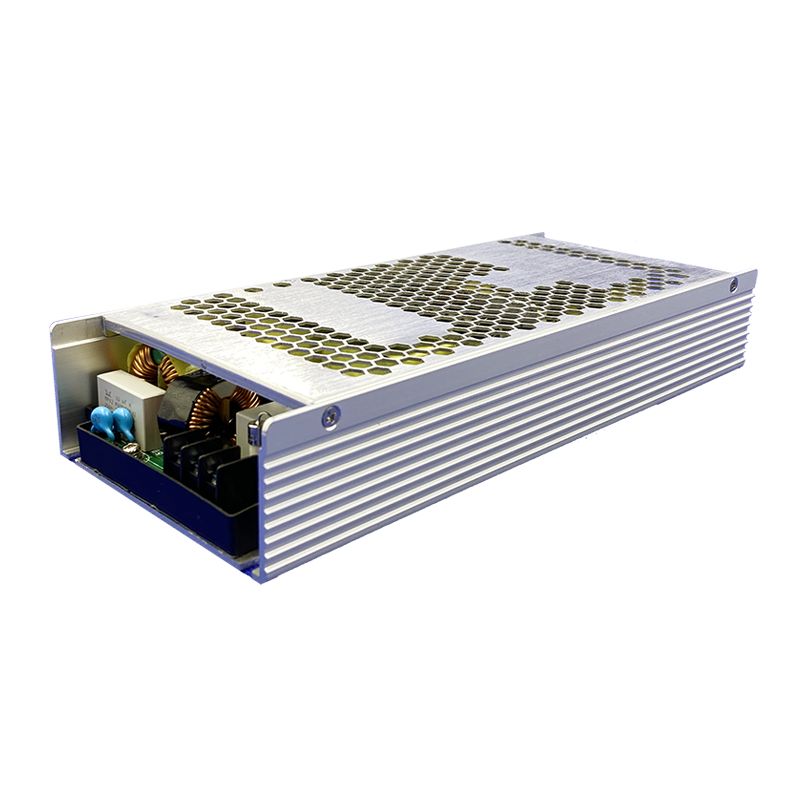

• Slim and Low Profile
• Protections : Short circuit / Over voltage / Over current / Over temperature
• Energy Efficiency ≥ 92%~95% depends on models
• MTBF > 50,000 hours
• Fanless and Conduction-cooled Design
• Withstand 300VAC Surge Input for 5 seconds
• Built-in Active PFC Function
• DC OK Active Signal
• LED Indicator
XX: Specified output voltage, i.e. 12 is 12VDC
YY: Differential segmentation
OUTPUT
| Wattage | Output | VAC Universal Input | Frequency | Mechanical Size |
|---|---|---|---|---|
| 750W | 12VDC | 100~240 | 50~60Hz | 237L x 100W x 41H (mm) |
| 800W | 24VDC | |||
| 36VDC | ||||
| 48VDC |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) ≥ Vo x Io
• Input Range 100 to 240VAC
• Frequency 50 to 60Hz
• Input Current ≤ 7.5A
• Inrush Current ≤ 40A/230VAC
• Hold Up Time ≥ 8.3ms
• Turn On Time ≤ 1s
• Short Circuit Protection Auto Recovery
• Over Circuit Protection Auto Recovery
• Over Voltage Protection Latch-off
• Over Temperature Protection Auto Recovery
• Operating Temperature -30 to 70°C
• Storage Temperature -40 to 85°C
• Operating Humidity 20% to 90 %
• Storage Humidity 10% to 95 %
• Mechanical Size: 237L x 100W x 41H (mm)
• Pin Assignment:
AC Input Terminal (CN1): DECAT21 or equivalent
|
Pin No. |
Assignment |
|
1 |
AC/L |
|
2 |
AC/N |
|
3 |
X |
DC Output Terminal (CN2,CN3 & CN7,CN8): EDAC Terminal
|
Pin No. |
Assignment |
|
ON2,ON3 |
+V |
|
CN7,CN8 |
-V |
• Weight: 1400g
• Complied with UL 62368-1, CAN/CSA C22.2 No. 62368-1, TUV EN 62368-1, CB IEC 62368-1, FCC Part 15B, CE EMC(EN 55032+EN 55035)
